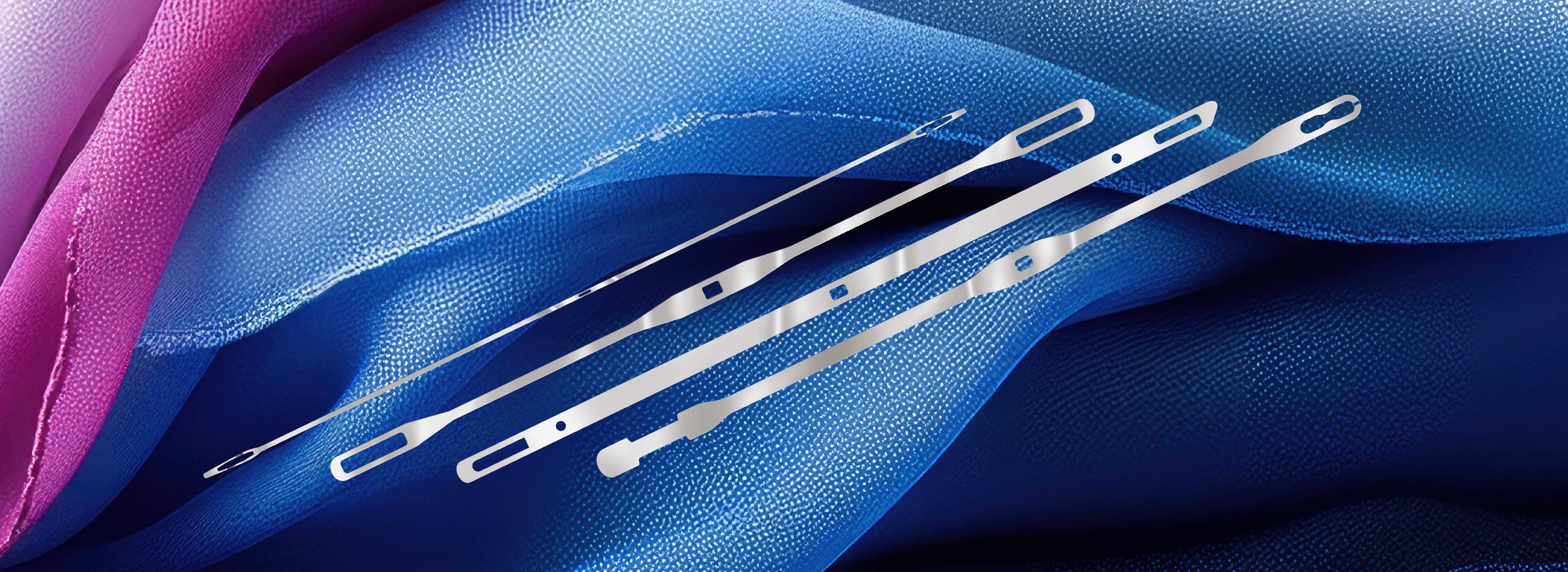

NARROW HEALDS
NARROW HEALDS
SUN Brand Healds empower smooth and easy weaving. The raw materials used in Narrow Healds are high quality hardened and tempered stainless steel (Inox) and high carbon steel strips.
| Type | Cross Section (mm) | Eye Size (mm) | Position of Thread Eye | Dimension of End Loop (mm) | Length (mm) |
|---|---|---|---|---|---|
| Simplex | 4,0 x 0,30 | 3,6 x 2,5 | in the centre | 13 x 2 | 150 155 160 170 180 |
| Simplex | 4,0 x 0,30 | 3,6 x 2,5 | in the centre | 15,5 x 2 | |
| Simplex | 4,0 x 0,30 | 3,6 x 2,5 | in the centre | 12 x 2 | |
| Simplex | 4,0 x 0,30 | 3,0 x 1,8 | 16mm above and below the centre | 15,5 x 2 | |
| Simplex | 4,0 x 0,25 | 3,0 x 1,8 | 16mm above and below the centre | 13 x 2 | |
| Simplex | 5,5 x 0,38 | 5,0 x 3,5 | in the centre | 13 x 2 | |
| Simplex Jakob Muller | 4,5 x 0,25 | 3,6 x 2,5 | 6 mm above the centre | 13 x 2,7 | |
| Simplex Jakob Muller | 4,5 x 0,25 | 3,6 x 2,5 | 6 mm above the centre | 13 x 2,7 | |
| Duplex Jakob Muller | 5,5 x 0,30 | 3,0 x 1,8 | in the centre | 12 x 1,8 |
Execution: Stainless Steel (Inox), Zinc Finish, Nickel Finish
