HEALD WIRES
HEALD WIRES

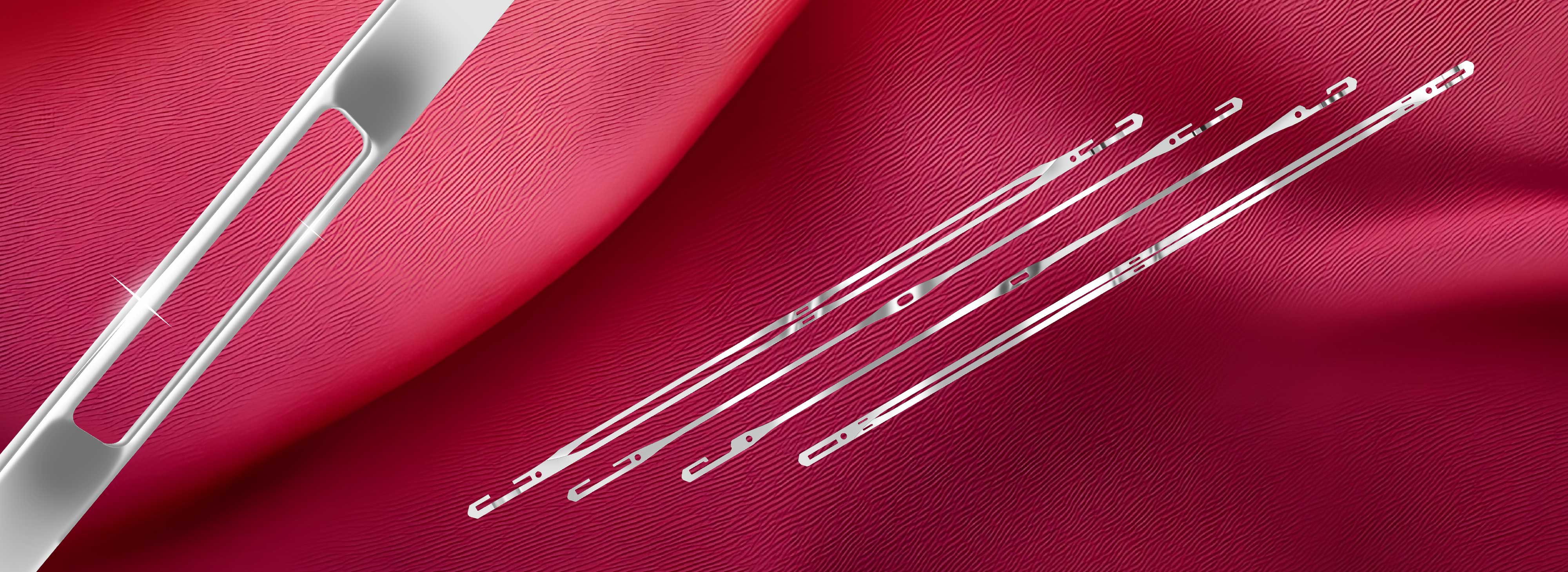

SUN BRAND Heald Wires are compatible with every make of looms, types and models - Tsudakoma / Toyota / Picanol / Itema / Sulzer / Dornier / Smit Machines. Be it Rapier, Waterjet or Airjet, they are proven to fit perfectly and to perform longer. Made from Premium Stainless Steel 420, Heald Wires are designed to withstand Speed, Wear, Abrasion, Vibration and Stress of today's high-end weaving machines.

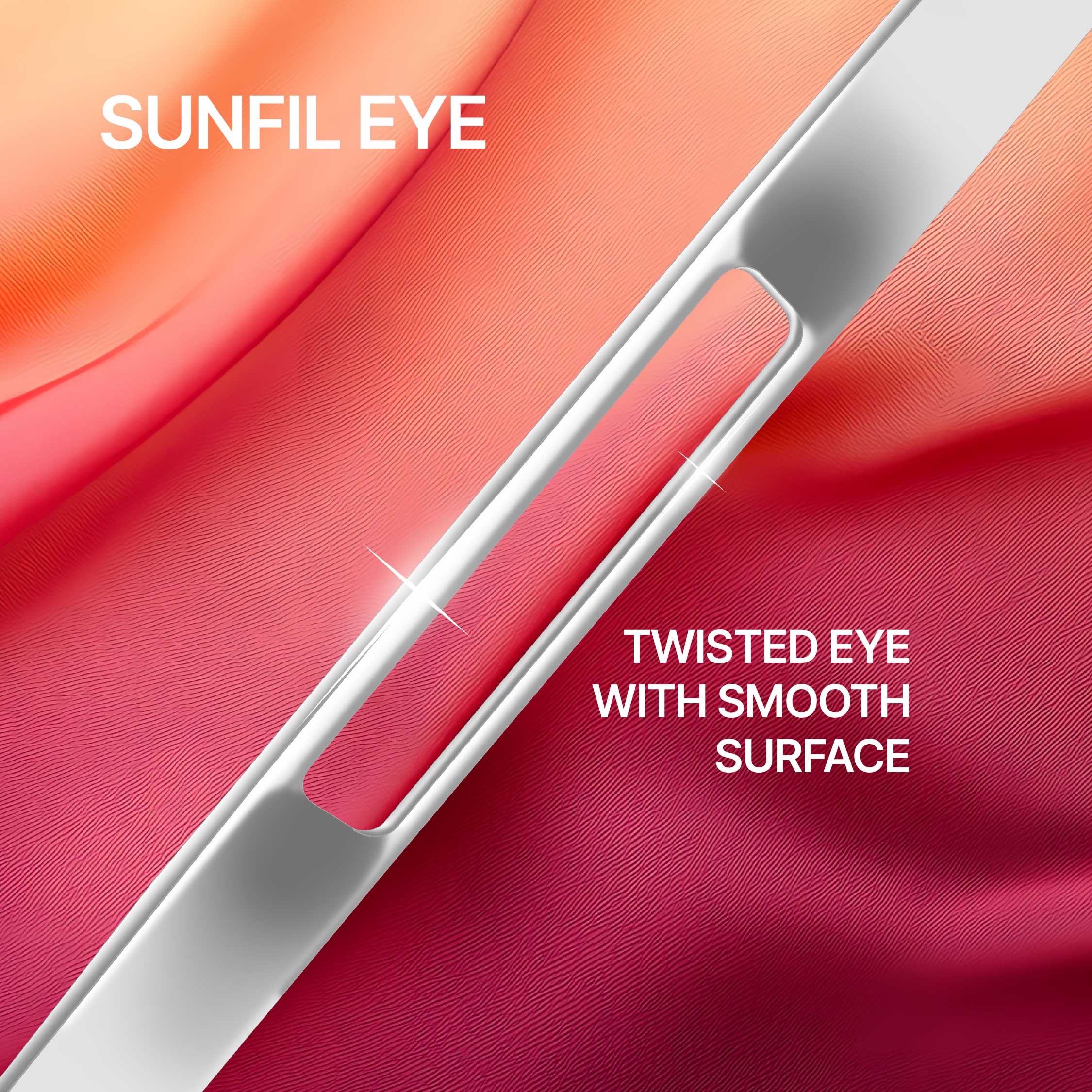

Sunfil Eye, indeed a revolution in the design of thread eye, is the ultimate assurance of perfection in weaving. The eye has a winning combination of real virtues - well researched design, ability to settle at precise angles and smooth, immensely polished surfaces. All these make it possible for the wrap yarn, however delicate, to pass through the eye almost with minimum friction even at high speed, minimizing the risk of micro-filamentation breakage or jam.
This results into longevity of the heddle and finer quality of the end product. It also ensures less break downs in the process and reduced energy consumption. The extra precisely finished round edges of the heddle doesn't give any room for pilling or rapturing to the finest yarn.
Heald Wires are available in complete range so you can weave versatile fabrics of finer to courser counts. Suitable for auto drawing-in machines - Staubli, ELM Supervega, TODO & Groz Beckert.

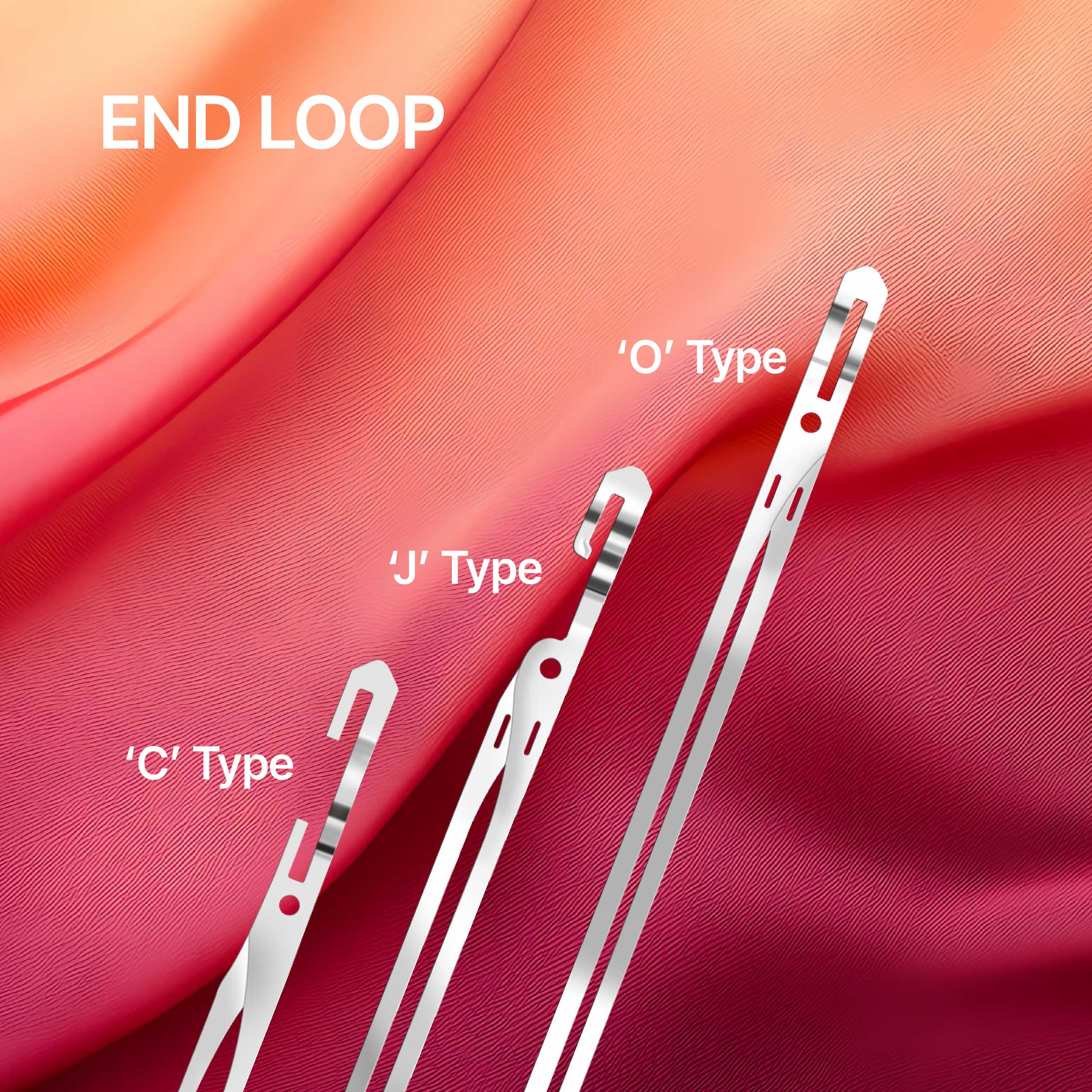

‘C’ & ‘J’ TYPE RIDERLESS HEDDLES
SIMPLEX
| Length | Thickness | Eye Size |
|---|---|---|
280 mm 331 mm 356 mm 382 mm | 0.25 mm 0.30 mm 0.38 mm | 5.5 x 1.2 mm 6.5 x 1.8 mm 6.5 x 2.5 mm 7.8 x 3.8 mm 8.0 x 2.5 mm 8.4 x 3.8 mm |
Placed in center / 5 mm above center / 10 mm above center
DUPLEX
| Length | Thickness | Eye Size |
|---|---|---|
280 mm 331 mm 356 mm 382 mm | 0.25 mm 0.30 mm 0.38 mm | 5.5 x 1.2 mm 6.5 x 1.8 mm |
Placed in center / 5 mm above center / 10 mm above center
EXECUTION: Stainless Steel (INOX)
SIMPLEX
| Eye Size (mm) | Wire Thickness (mm) | Heddle Density per Rod (Regular per cm) | Regular per inch | Sunfil Eye per cm | Sunfil Eye per inch |
|---|---|---|---|---|---|
| 5.5 X 1.2 | 0.25 | 13 | 32 | 17 | 43 |
| 5.5 X 1.2 | 0.30 | 12 | 30 | 15 | 38 |
| 6.5 X 1.8 | 0.25 | 8 | 21 | 11 | 28 |
| 6.5 X 1.8 | 0.30 | 8 | 20 | 10 | 25 |
| 6.5 X 1.8 | 0.38 | 7 | 18 | 9 | 23 |
| 6.5 X 2.5 / 8.0 X 2.5 | 0.30 | 6 | 15 | 8 | 20 |
| 6.5 X 2.5 / 8.0 X 2.5 | 0.38 | 5 | 13 | 7 | 18 |
DUPLEX
| Eye Size (mm) | Wire Thickness (mm) | Heddle Density per Rod (Regular per cm) | Regular per inch | Sunfil Eye per cm | Sunfil Eye per inch |
|---|---|---|---|---|---|
| 5.5 X 1.2 | 0.25 | 18 | 47 | 25 | 61 |
| 5.5 X 1.2 | 0.30 | 17 | 45 | 23 | 58 |
| 6.5 X 1.8 | 0.30 | 11 | 28 | 15 | 38 |
EYE SIZE RECOMMENDATIONS FOR COMMON YARN SIZES (in mm)
